169 Long arm side wall sole stitching machine for boots
--One needle double thread side seam sewing machine
for sewing box soles onto shoes and ankle boots

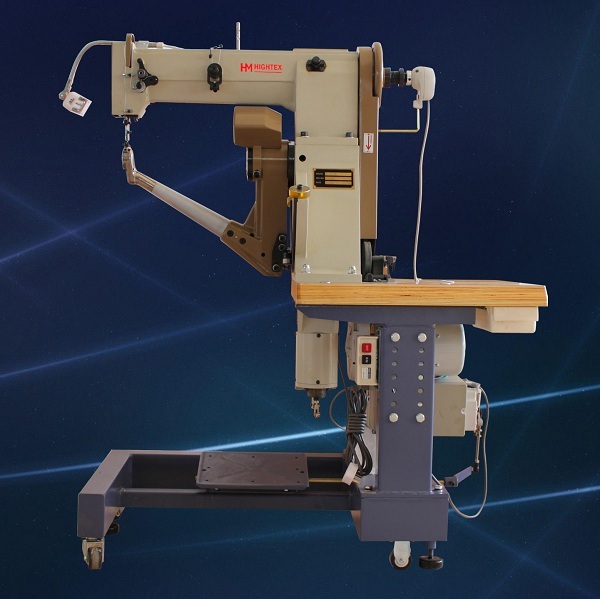

169 Side wall sewing machine
Side wall sole stitching machine

Side Wall Sewing Machine For Shoe

Side Wall Stitching Machine

Your advantages:

1. The floating horn supports the hook, and has a special profile to make sewing around the toe and heel areas easy, even on closed ankle boots;

2. High output rotary hook action stitching to sew up to 10 pairs of shoes without changing the bobbin;

3. Equipped with automatic needle position servo motor, the needle and presser foot are constantly in the up position at the end of sewing, which makes it easy to remove the sewn product;

4. We also supply pnuematic bladder bag presses for sticking the sole onto the upper prior to using the 169 side wall stitcher;

5. This side wall sole stitching machine adopts double feeding mechanism (walking foot + needle feed) that guarantees the uniform stitches;

6. The long arm of machine makes it possible to sew both standard and elongated products (boots);

7. Completely installed, thoroughly tested and serviced, ready to operate out of box.

Applications:

Suitable for leather boots, working boots, safety footwear, leather shoes, sports shoes, leisure shoes, casual shoes, sandals, side seam locking type sideline processing for bags, luggage, furniture.


Specifications:

Max. Sewing Speed:

900 rpm

Hook Type:

Large rotary hook

Needle System:

CPx5

Motor:

750W Servo motor

Stitch length:

3 -12 mm

Working area:

330X180mm

Presser Foot Lift:

13mm

Sewing thickness :

1.5-6mm

Package (plywood case):

1360X780X1560MM, G.W: 220KGS

Tariff code (HS code):

8452290000


Need to expand your production and maximize profits? Contact us at info@automatic-sewing.com
