MLK6040 Large field programmable CNC pattern sewing
machine for bulletproof vest,safety harness and upholstery

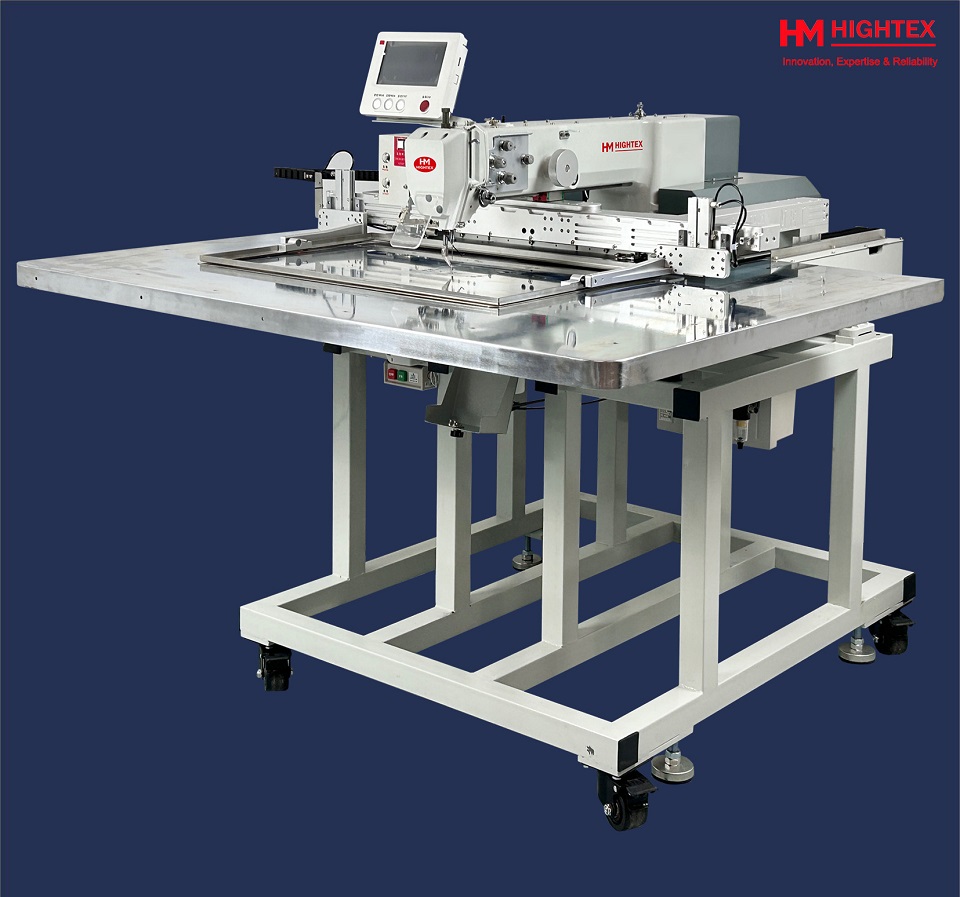

heavy duty large area programmable pattern sewing machine

Your advantages:

1. Up to 600x400 large sewing area allow for sewing bulletproof vest, full body safety harnesss and upholstery panel by single operation;

2. The new auto thread trimming system can cut thread very short that eliminate manual thread trimming operations to improve productivity;

3. Presser foot control mechanism always provides uniform thread tightness (when thickness of material has been changed, the height of stepping presser foot is changed accordingly without tools required);

4. Smooth and beautiful stitches can be produced with a minimum resolution of 0.1mm;

5. The anti-bird nest device can prevent the problem of thread tangling up (bird nesting), no need to spend large amounts of time trimming thread and cleaning up nests of thread (long thread tails that have been sewn over);

6. The bobbin thread detector will automatically stop machine when bobbin thread runs out, as a result, sewing operators can concentrate on their work without worrying about the bobbin thread;

7. From now, the production process will be even easier: no need of skilled worker, zero waste time, just put your sewing product and you will see how easy it is.

Applications:

functional or decorative stitching on shoes upper, leather bags,Bulletproof Vest, full body safety harness, jeans, car seat cushion, airbags, car seat cover, upholstery and linings, upholstered panels wall, upholstered Headboards, bedroom wall panels


Specifications:

Max. Sewing Speed:

2000 rpm

Hook Type:

Double-capacity rotary hook

Sewing Area:

600mmX400mm

Needle System:

DPX17#18

Max. Thread size

Metric #15 (=V207, T-210, 630dx3)

Feed mechanism:

Intermittent feed, pulse motor drive

Bobbin size:

Outside Dia. 25mm, Height 11mm

Stitch Length:

0.05 - 12.7 mm

Tariff code (HS code):

8452219000

Work Holder Lift :

32mm

NeedleBar Stroke:

41.2mm

Presser Foot Lift:

20mm

Presser foot stroke:

4 mm to 10 mm

Max. QTY of Patterns:

10000 patterns

Pneumatic specifications:

Pneumatic method

Pattern Storage :

Internal & USB

Pattern Input :

Touch screen

Max. Number of Stitches:

20,000 per pattern

Drive Motor:

Limi-Servo (550 Watts)

Air pressure:

0.5 MPa 1.8 l/min

Power:

200-240 Volt 1 or 3 Phase

Thread trimmer system:

Horizontal engagement with fixed knife and movable knife

Lubrication system:

Replenishment with the oil braids from the oil tanks

Package (plywood case):

1620x1550x1420MM, G.W: 470 KGS


Need to expand your production and maximize profits? Contact us at info@automatic-sewing.com
