7267 High-Quality Medium Duty Walking Foot Industrial

Sewing Machine for Leather and Upholstery

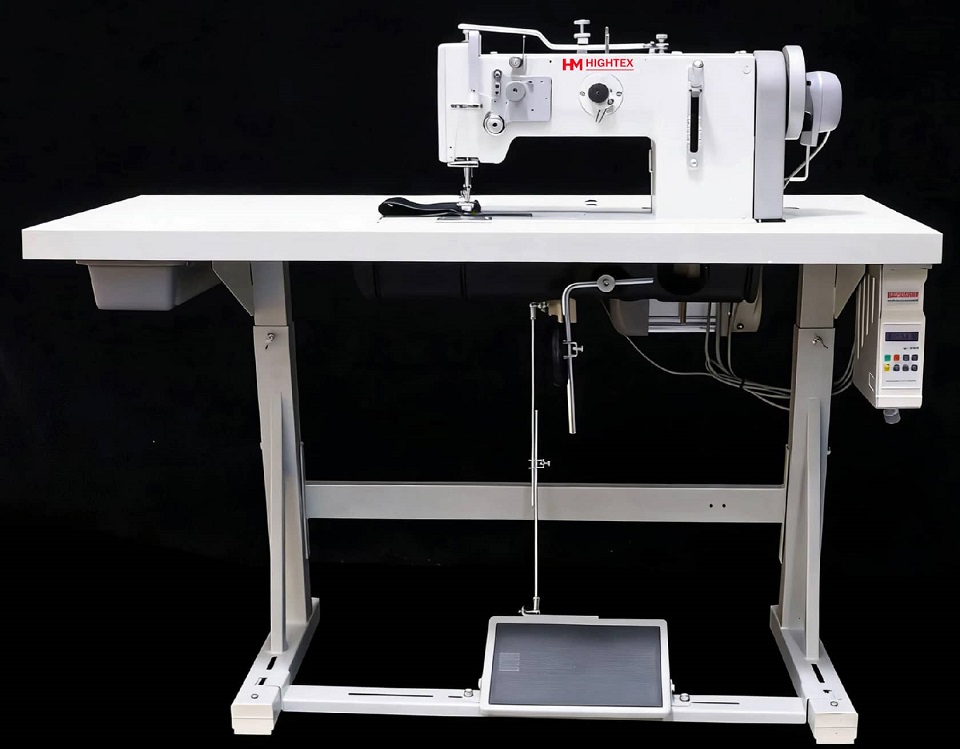

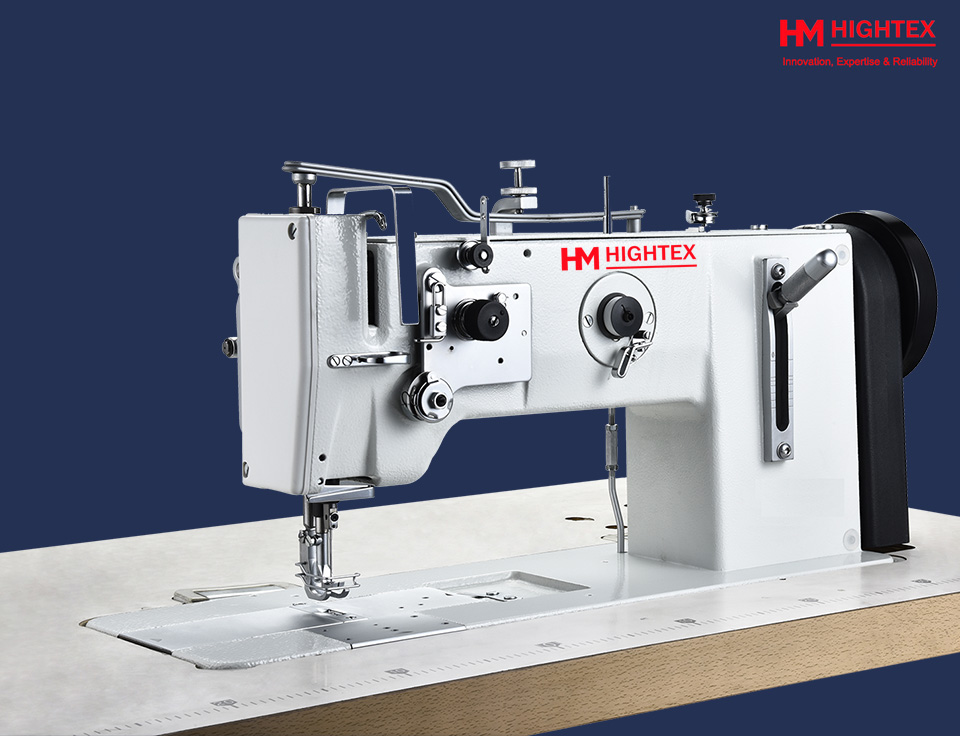

Durkopp Adler 267-373 Upholstery sewing machine

Your advantages:

100% Genuine Dürkopp Adler 267 Components

1. Premium German Engineering: The absolute biggest advantage of the HighTex 7267 is that it is built entirely using genuine Dürkopp Adler parts.

2. Exact Replica: It functions as an exact, flawless version of the legendary Dürkopp Adler 267-373—a machine globally renowned as the gold standard for general leatherwork and upholstery.

Budget-Friendly Industrial Reliability

3. Bridges the Cost Gap: It allows workshops to access the world-class precision, strict tolerances, and mechanical stability of a true German-engineered machine.

4. No "Clone" Quality Issues: Unlike generic Chinese clones that suffer from poor metal casting and frequent timing skips, the 7267 uses authentic Adler parts to guarantee long-term industrial durability.

Powerful Triple-Feeding System

5. Unison/Compound Feed: The machine utilizes a synchronized combination of a lower feed dog, a needle-bar feed, and an alternating walking presser foot.

6. Zero Material Slippage: This robust triple-feed mechanism effortlessly feeds multiple heavy layers of leather, vinyl, canvas, webbing, and synthetics without shifting or bunching the layers.

High Clearance and Thick Thread Capability

7. High Foot Lift: It features an elevated presser foot stroke and high foot lift, making it easy to climb over overlapping seams and thick material assemblies.

8. Large Hook Capacity: It is equipped with a large hook and base to accommodate oversized bobbins. This allows you to sew with very thick structural or decorative threads without constantly running out of lower thread.

Precision Speed Control

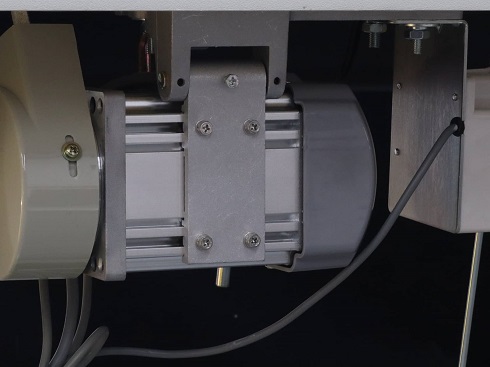

9. Low-Speed Electronic Servo Motor: The machine is paired with a high-torque slow speed electronic servo motor (such as the Kinedyne HM-750SH).

Durkopp Adler 267 Leather sewing machine

10. Stitch-by-Stitch Management: It can sew at incredibly low speeds (down to 50 RPM) while maintaining full penetrating power. This gives the operator absolute control when stitching complicated parts, tight corners, or detailed leather goods.

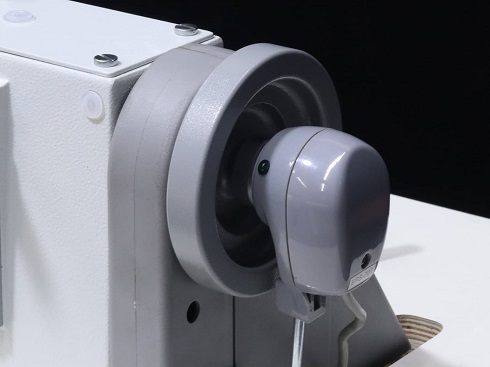

Leather sewing machine servo motor

Applications:

For upholstery, soft furnishings, home interiors, outdoor covers, car seat, bags, tents, auto, marine and aviation interiors and will sew canvas, acrylic, PVC, leather, technical textiles, heavy fabrics and much more.

Specifications:

Max. Sewing Speed:

1700 spm

Hook Type:

Double capacity

Min. Sewing Speed :

50 spm

Stitch type:

301

Needle System:

134-35 Size#110-140

Max. Thread size:

10/3

Stitch Length:

6mm

Bobbin size:

Outside Dia. 26mm, Height 11.3mm

Max. sewing thickness:

10mm

Presser foot alternating:

5mm

Length of arm:

260mm

Recommended motor:

Kinedyne HM-750SH servo motor

Packing size:

765x280x670MM, 45KGS

Tariff code (HS code):

8452290000
