CB-8500 Hand Operated Hole Punching Machine

for Handmade Leather Belts and Leather Straps

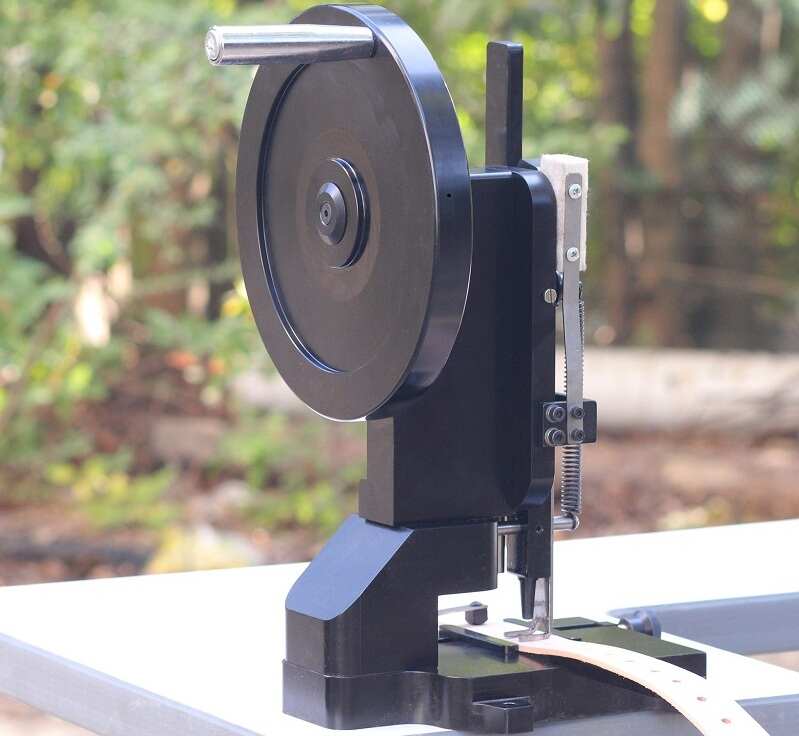

8500 hand operated leather belts hole punching machine

Your advantages:

1. This machine is built for basic repeat punching in the belt and strap trades, designed for maximum performance and efficiency at a great price;

2. No electricity required. Simply hand crank the wheel to punch the material, and the machine feeds the work;

3. Equipped with a self-centering gauge that accommodates straps from 1/2"o 4-1/8″ wide;

4. The feed can be adjusted to punch holes from 7/16" (10 mm) to a max. of 1-3/4" (45 mm) apart; leather belts hole punching machine

6. Dual feed design helps feed material through machine;

7. A clicker board anvil offers more effective punching;

8. Simple, trouble-free design allows you to punch self-centering holes or punch holes down the side of a strap with the addition of our optional offset guide;

9. Oval hole puncher (6mmx4mm) is available as option.

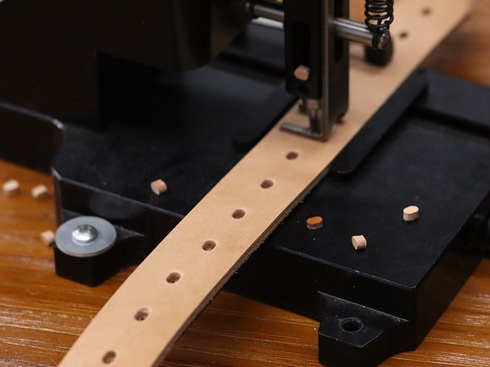

Oval hole punching machine

Applications:

Handmade Leather Belts and Leather Straps


Specifications:

Accommodates straps:

1/2 to 4-1/8 wide

Adjustable Hole Punching Distance:

7/16 to 1-3/4

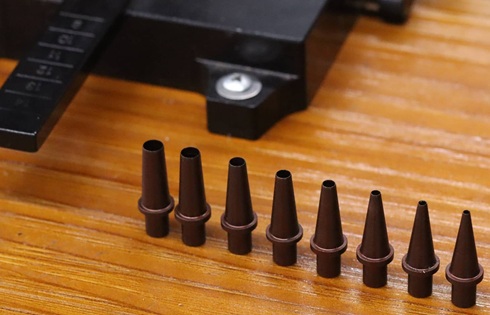

Hollow Punches Sizes:

Stnadrd:4mm, 4.5mm, 5mm + Optional 2mm, 2.5 mm, 3mm, 5.5mm, and 6mm

Work Space:

17 x 14 x 12 (43 x 35 x 30 cm)

Material of blade:

High speed steel (HSS)

Packing size:

Net weight: 63 lbs. (28 kg) / Shipping Weight: 75 lbs. (34 kg)


Are you ready for a Crafting Revolution? Ready to be Inspired? Contact us at info@automatic-sewing.com
