Innovation, Expertise & Reliability

Since 2010 we have been involved in the production of HIGHTEX heat-sealing equipment for industrial fabrics, such as inflatable products and inflatable products, awnings and shades to truck tarp curtains, tents, banners and billboards, ducting / ventilation, geo liners and filtration products.

  Heavy duty cylinder bed sewing machines

dot  Heavy duty thick thread flat sewing machine

dot  FIBC bulk bags making machines

dot  Heavy duty zigzag sail making machines

dot  Long arm heavy duty sewing machines

dot  Heavy post bed thick thread sewing machine

dot  Heavy duty automatic pattern sewing machine

dot  Cutting machines for slings/ropes and leather

dot  Spare parts and special sewing accessories

dot  Hot air welding machine & ultrasonic welder

dot  Bespoke & custom made sewing machines

dot  Servo motor for heavy duty sewing machines

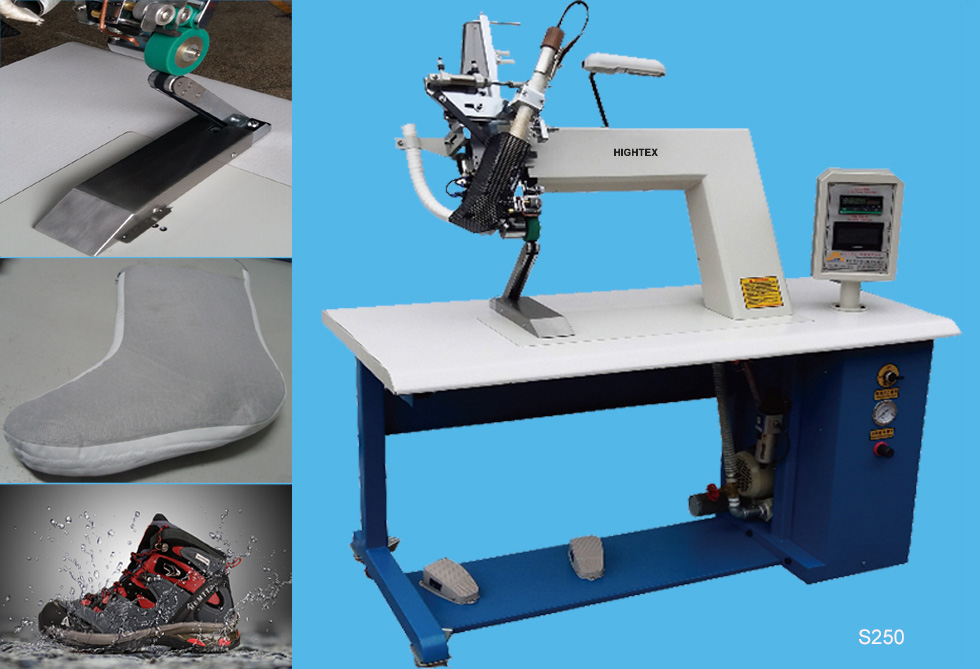

S250 hot air seam sealing machine waterproof shoes

S250 hot air seam sealing machine waterproof shoes

Features:
The special angle post bed design is suitable for seaming waterproof shoes and other shaped products.

Specifications:
Model: S250
Voltage: AC200-240V, 50-60HZ
Power: 2500W
Max. Temperature of hot air: 700C
Welding speed: 1-24m/min
Air pressure: 0.35-0.5MPA
Roller width: 25.4mm
Upper roller lift: 20-35mm
Packing size: 1300x600x1600mm
Net weight: 160KGS

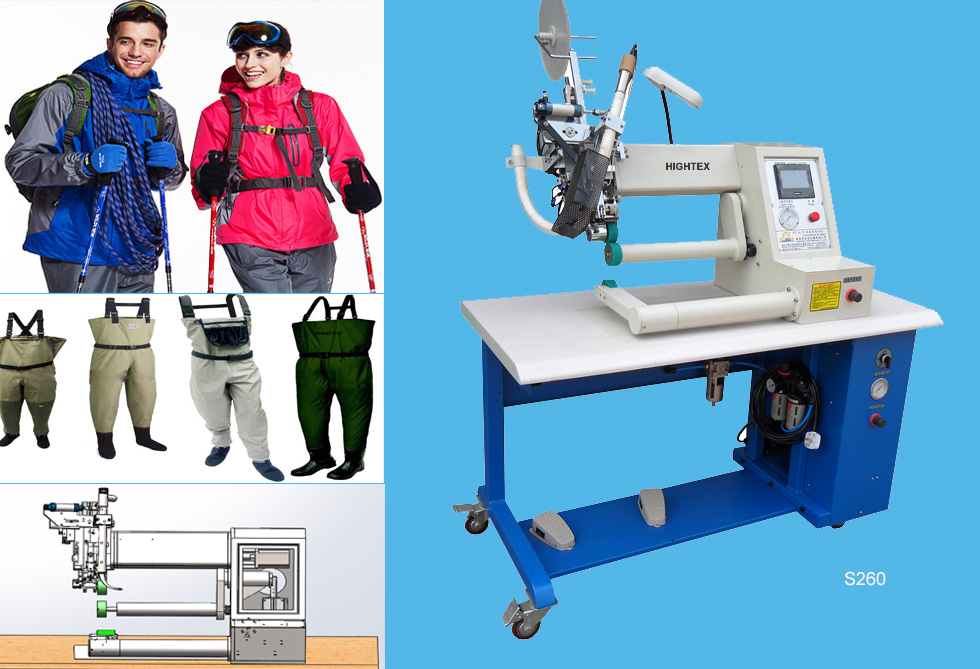

S260 Hot air tape welding machine for outdoor clothing and gear

S260 Hot air tape welding machine for outdoor clothing and gear

Features:
The free arm design is ideal for for weldingout door clothing and gear

Specifications:
Model: S260
Voltage: AC200-240V, 50-60HZ
Power: 2500W
Max. Temperature of hot air: 700C
Welding speed: 1-24m/min
Air pressure: 0.35-0.5MPA
Roller width: 30mm
Tape width: 14-22mm
Packing size: 1300x600x1530mm
Net weight: 165KGS


S280 hot air welding machine for chemical protective clothing

S280 High performance hot-air tape welding machine for continuous seam welding on protective clothing, diving suit and high quality waterproof jacket

For items used for radiation protection, hygienic protection, environmental protection or waterproof clothing, the additional sealing of seams using a tape is an important quality feature, HighTex S350 is an excellent solution to guarantee the best possible resistance of the welding seam; Two separate drive motors for the top and bottom feed roller guarantee an optimum adaptation to the operation (e.g. smooth seams or fullness for formed parts); Switchable arm: the cylinder arm manages curves and tube shapes for applications like cuffs of waterproof jacket and protective clothes. The post bed is for straight seams and facilitate the handling of difficultly accessible seam areas;This hot-air tape welding machine with a cheaper price than others on the market offers average European quality standards

  Read More.......


S300 hot air welding machine for waterproof jackets and coats

S300 hot air welding machine for waterproof jackets and coats

Features:
The best sell hot air tape welding machine with good price/performance ratio, can make both stright seam and curved seam in the production of waterproof jackets and coats.

Specifications:
Model: S300
Voltage: AC200-240V, 50-60HZ
Power: 2000W
Max. Temperature of hot air: 700C
Welding speed: 1-24m/min
Air pressure: 0.35-0.5MPA
Roller width: 25.4mm
Upper roller lift: 20-35mm
Packing size: 1300x600x1600mm
Net weight:170KGS


S350 hot air tape welding machine

S350 Best sale hot-air seam sealing machine (hot air tape welding machine) for welding continuous seams on raincoat, waterproof garment and tents

An affordable hot-air taping machine for welding continuous seams on water-resistant, waterproof and breathable materials; Extreme durability due to the imported electronic control system (Made in Japan); The synchronized top and bottom rollers ensures positive feeding of material without slippage & providing smooth welding of bulky materials; Touch-control-panel(Panasonic), very use and maintain, no need of skilled worker; The slim welding head and the slim post bed facilitate the handling of difficultly accessible seam areas; This hot-air seam sealing machine with a cheaper price than others on the market offers average European quality standards.

  Read More.......

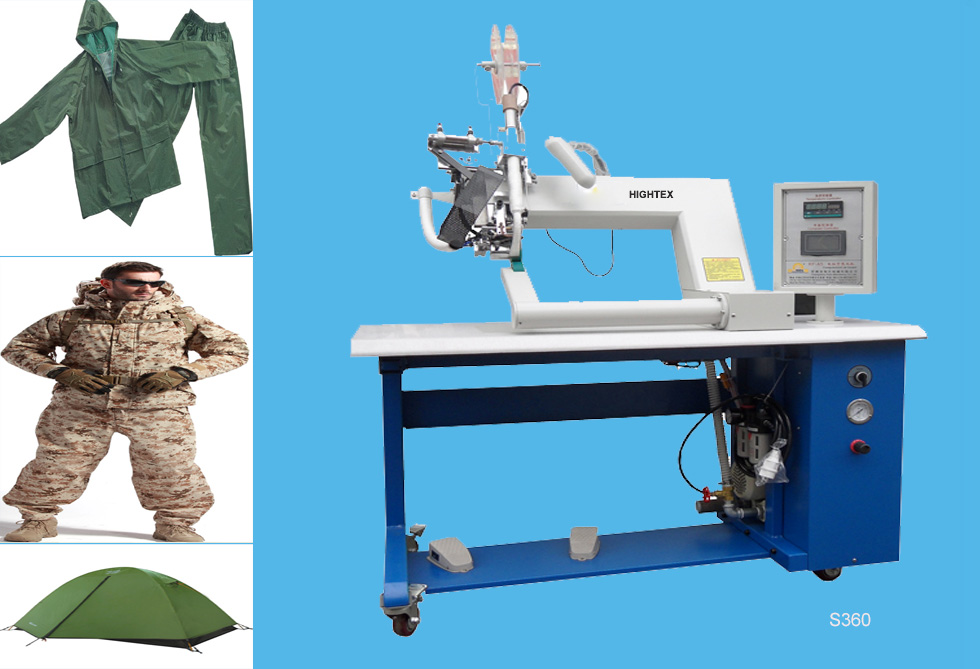

S360 Hot air tape welding machine waterproof garment

S360 Hot air tape welding machine waterproof garment

Features:
This universal hot air tape welding is same to S350, but with special arm design, ideal for welding corners or tubular products.

Specifications:
Model: S360
Voltage: AC200-240V, 50-60HZ
Power: 2500W
Max. Temperature of hot air: 700C
Welding speed: 1-24m/min
Air pressure: 0.35-0.5MPA
Roller width: 25.4mm
Upper roller lift: 20-35mm
Packing size: 1300x600x130m5m
Net weight: 165KGS

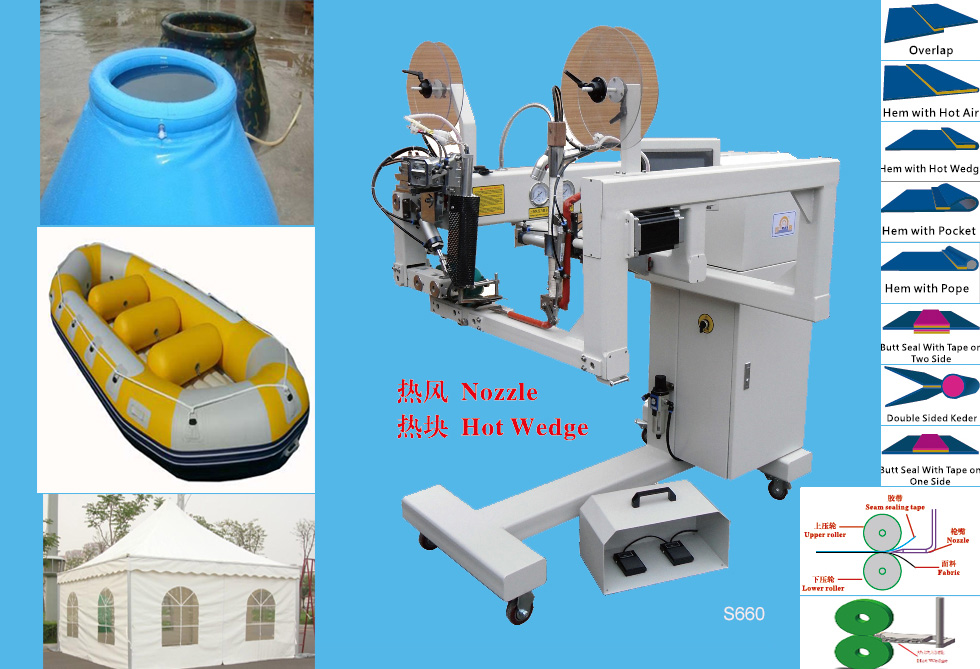

S660 Hot air or hot wedge welding machine for PVC

S660 Hot air or hot wedge welding machine for PVC

Features:
The double head hot air or hot wedge welding machine is custom made welding equipment for inflatable products with complicated construction, such as inflatble pool, inflatable boats, tents etc.

Specifications:
Model: S660
Voltage: AC200-240V, 50-60HZ
Power: 5500W
Max. Temperature of hot air: 700C
Welding speed: 1-18m/min
Air pressure: 0.35-0.5MPA
Roller width: 50mm
Hot Nozzle width: 45mm
Optional device: Hot Wedge
Packing size: 1500x990x1600mm
Net weight: 280KGS


S680 hot air welding machine

S680 Best sale hot air or hot wedge welding machine at affordable price for finishing banners, signs, tents, kayaks, bounce house and other inflatable producs

Extreme durability due to the imported electronic control system (Made in Japan); It has a durable, sturdy frame construction and requires little assembly and minimal maintenance;The top and bottom weld rollers are independently controlled which helps welding of 3D and curved products, this hot air welder is a super versatile machine; Built for safety and ease of use, this compact machine is perfect for welding, hemming, creating rope pockets, pole pockets and much more; This hot air welding machine and / or hot wedge welding machine with a cheaper price than others on the market offers average American quality standards; Service and support are important considerations in your selection of a hot air inflatable welding machine, we understand how critical it is that your equipment work correctly.

  Read More.......


350

S700 Best sale hot air inflatable welding machine for sealing nflatable boats, inflatable tents and PVC flexible ducting

S700 Hot air welding machine is rotary hot air and hot wedge sealing machine to join thermoplastic fabrics and industrial fabrics using very precise heat speed and pressure settings. For example PVC laminated fabrics, Vinyl coated fabrics, Vinyl Films and Polyurethane (PU) coated fabrics, Polyurethane films, Polypropylene-coated fabrics, Polyethylene (PE), Thermoplastic rubber fabrics, acrylics and others.

Extreme durability due to the imported electronic control system (Made in Japan); The large clearance room under the arm is very useful when welding larger items, for example: inflatable boat and tarpaulins; The top and bottom weld rollers are independently controlled which helps produce and expanded range of products and materials; Automatic temperature tracking system ensures the precision of welding temperature(±1℃); Different welding mould, fabric guide, special attachments and Heat Sink are available to weld hems, hem with pockets, overlap, hem with hot air, hem with hot wedge, hem with rope, butt seal with tape; Switchable arm: the curve arm manages curves and unique shapes for applications like inflatable boats and inflatable kayaks. The flat bed table is for straight seams for applications like tarps, awnings and tents; Service and support are important considerations in your selection of a hot-air welding machine. We understand how critical it is that your equipment work correctly.

  Read More.......


350

S700-1800CT Long arm automated hot air PVC welding machine for covers, tents, awnings, shades, inflatable boat, banner,ducting hoses and ventilation hoses

The custom made long arm hot air PVC welding machine with 1800mm long arm and puller feed to join thermoplastic fabrics and industrial fabrics using very precise heat speed and pressure settings. For example PVC laminated fabrics, Vinyl coated fabrics, Vinyl Films and Polyurethane (PU) coated fabrics, Polyurethane films, Polypropylene-coated fabrics, Polyethylene (PE), Thermoplastic rubber fabrics, acrylics and others.

Easier fabric handling with inboard and outboard fabric puller; The large clearance room under the arm is very useful when welding larger items, for example: inflatable boat and tarpaulins; The top and bottom weld rollers are independently controlled which helps produce and expanded range of products and materials; Automatic temperature tracking system ensures the precision of welding temperature(±1℃); Different welding mould, fabric guide, special attachments and Heat Sink are available to weld hems, hem with pockets, overlap, hem with hot air, hem with hot wedge, hem with rope, butt seal with tape; Switchable arm: the curve arm manages curves and unique shapes for applications like inflatable boats and inflatable kayaks. The flat bed table is for straight seams for applications like tarps, awnings and tents; Service and support are important considerations in your selection of a hot-air welding machine. We understand how critical it is that your equipment work correctly.

  Read More.......


S700

S701 Hot air welding machine for inflatable boats

HIGHTEX #S701 Inflatable hot air welding machine is cylinder bed hot-air seam sealing machine to join thermoplastic fabrics such as PVC,TPU / PU, PE, PP and various other technical fabrics.

This hot hair welding machine is modified by model S700, special for welding head of inflatable boats. The versatile cylinder bed design is very useful when welding shaped items or curves panels etc.

Service and support are important considerations in your selection of a hot-air welding machine. We understand how critical it is that your equipment work correctly.

This hot air welding machine is ideal for the fabrication of inflatable boats, rubber boats, outdoor awnings, trampolines, tarpaulins, luggage and suitcase, Air Balloon, tents, banners and billboards, ducting / ventilation, geo liners, filtration products, military tents and other military products.


S350

S400 Ultrasonic sealing machine with rolling sonotrode

The S400 is used specifically in thread less technology. Provides totally watertight seams. Uses a quiet but powerful 35KHZ generator. Fully certified and CE marked against hearing damage from ultrasonic generator noise. There is a microprocessor control with a HMI screen operator interface. The design and function of the machine provides excellent control in the constructions of curved seams and is operated just like a standard sewing machine. Capable of handling all types of materials with synthetic content, stretch materials, laminated and coated materials, fleece and soft shell fabrics, non wovens, cotton blends etc.
Seams are less bulky.
Uses minimal seam allowances creating flatter seams.
Improves comfort levels on next to skin garments.
Cleaner cosmetic appearance.

Applications: underwear, sportswear, medical gowns, outerwear, rucksacks, bags, nylon-pvc and nylon-pu, oxford cloth and rubber cloth rain coats, jackets, wind coats, snow-suits, ski wears, nylon tents, military water-proof coverings and bags, light vehicle coverings, car coverings, etc.

Click here for video
