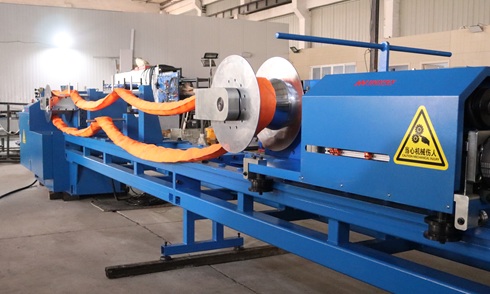

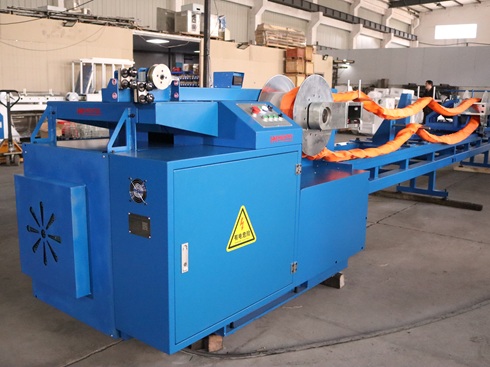

Custom Round Sling Machine (Tubular Round Sling Making Machine)

RSM911 serials Round Sling Machines designed to manufacture one or more round sling (Tubular lifting slings) simultaneously. These machine come in small, high speed or large with an automatic tension force system. The HighTex round sling machines feature an adjustable movable head so that any length sling can be made.

A special technology has been developed for winding core fiber in a solid-woven cover without sagging, which is very important for maintaining the calculated strength of tubular round sling;

HighTex has the experience and innovation to create new solutions in round sling making machine. HighTex has the right machines for your business, allowing you to produce individual custom slings according to your customers requirements.

Click here for video


Major Advantages

1. The working load limit is determined by the number of turns in the hank, as well as constant tension of core yarn. RSM911 Round sling making machines more compact as the winding of the yarn is uniform, and the tension on each yarn is constant;

2. Manufacture 2 tubular round sling simultaneously;

3. The load bearing fibers are wound together to form an endless hank;

4. Special technology has been developed for winding core fiber in a solid-woven cover without sagging, which is very important for maintaining the calculated strength of tubular round sling;

5. Equipped with a digital measuring device that ensures measurement accuracy;

6. The frame is made using robotic welding complexes, which ensures high quality;

7. Customizing solutions to meet specific requirements can lead to significant cost savings, it will allow you to successfully compete with other manufacturers - offering your customers high quality round slings at low prices.

Specification

POWER: 38KW
VOLTAGE: 380 Volt 3 Phase
CAPACITY: 100T (WLL)
OVERLENGTH: 12 METER
MINIMUM LENGTH: 1 METR
HANGER: 2
LAYOUT:(L)13.6METERS, (W)1.45METRE, (H)1.2METER

Your Attention Please: above specifications are for the machine in picture. We custom made various round slings according to customer requirement.When you purchase round sling making machine, please confirm 2 basic parameters:

1. Working load limit (WLL) or safe working load (SWL)

2. Over length of your round sling
